56 products
Engweld stocks a superb range of welding helmets and grinding helmets from global manufacturers such as 3M, Lincoln Electric and ESAB. These welding masks, including popular air fed welding helmets and ADF welding masks, also come with spares and other equipment to help you weld safely. We are dedicated to only providing the best quality products for our customers, whether welding in a large industrial setting or as a hobby welder at home. The leading welding mask brands we work with share our commitment to health and safety, developing the best products using the latest technology available in 2025.
There's no doubt that welding masks are essential. The arc's intense light is impossible to see through safely and can damage your eyes. They shield your face from sparks, fumes and the bright light, making them crucial welding equipment. Additionally, this essential face protection prevents exposure to welding fumes, which can cause significant health problems if the workshop does not have adequate fume extraction. A good welding mask will also improve weld quality by ensuring the welder has full visibility on the welding arc and weld pool, maintaining concentration on the task at hand.
The most popular air fed welding helmet we sell if the ESAB sentinel A60 air, while a popular air fed option is the Speedglas G5-01 VC. For those welders purely TIG welding, look no further then the auto darkening welding helmet Speedglas G5-02. For those welders welding MIG, TIG, MMA and also plasma cutting, a good auto darkening option is the ESAB Sentinel A60 welding helmet.
The best welding masks and helmets include benefits like grinding mode, true colour, arc sensors and a broad viewing area. Grinding mode allow the welding helmet to be used for many cutting tasks, true colour allows welders to see a more realistic spectrum of colour while welding and arc sensors are in-built in auto darkening welding helmets to sense when to darken the screen. And of course a large viewing area ensures a clear view of all materials and the welding machine itself.
This comparison highlights the key technical elements of the listed welding helmets, focusing on optical clarity, viewing area, shade range, and unique features that distinguish entry-level from high-end professional models.
The industry standard for optical clarity is the 1/1/1/1 rating (Optical Class / Diffusion of Light / Variations in Luminous Transmittance / Angle Dependence), with 1/1/1/2 being common for mid-range models.
| Model | Optical Clarity (EN 379) | Viewing Area (Approx.) | Light State (Grind Mode) | Dark Shade Range | Arc Sensors | Key Technical/Ergonomic Feature |
| ESAB Sentinel A60 | 1/1/1/1 | 13.02 sq. in. (118 x 71 mm) | DIN 3 | DIN 5–13 | 4 | Halo Headgear, External Grind Button, High-Definition True Color lens. |
| ESAB Savage A50 Lux | 1/1/1/1 | 100 x 60 mm (6 sq. in.) | DIN 3 | DIN 5–13 | 4 | Integrated 50-Lumen LED Work Light, OpTCS True Color, PAPR-ready. |
| Lincoln Viking 3350 | 1/1/1/1 | 12.5 sq. in. (Largest ADL) | DIN 3 | DIN 5–13 | 4 | 4C Lens Technology (True Color), External Grind Button, High comfort headgear. |
| 3M Speedglas G5-03 Pro VC | 1/1/1/2 | 104 x 170 mm (Variable) | DIN 3 | DIN 5–13 | 4 | Flip-up Grinding Visor, Variable Color (VC) Technology, PAPR-ready (Air-fed models). |
| Parweld XR943H Flip Up | 1/1/1/1 | 108 x 74 mm (8 sq. in.) | DIN 3 | DIN 4–13 | 4 | Flip-up Grinding Visor, Panoramic View, Settings Memory Function, True Colour. |
| ESAB Savage A41 | 1/1/1/2 | 100 x 50 mm (5 sq. in.) | DIN 4 | DIN 9–13 (Digital) | 4 | Digital User Interface, External Grind Button, True Colour ADF. |
| ESAB Swarm A20 | 1/1/1/2 | 93 x 43 mm (4 sq. in.) | DIN 4 | DIN 9–13 (Adjustable) | 2 | Entry-level model, streamlined shell, Grind Function. |
| Parweld XR942H | 1/1/1/1 | 116 x 81 mm (9 sq. in.) | DIN 3 | DIN 4–13 | 4 | Panoramic ADF (improves peripheral vision), Light State DIN 3, True Colour. |
Air-Fed Welding Helmet (PAPR) System Comparison
The performance of an air-fed helmet is heavily reliant on the technical specifications of the PAPR (Powered Air Purifying Respirator) blower unit. The primary differences lie in the Air Flow Control, Battery Life, and Air Distribution within the helmet.
| Feature | ESAB EPR-X1.1 (Used with Sentinel/Savage/G50 Air) | 3M Adflo (Used with Speedglas G5-01/G5-03) | Parweld PAPR Unit (Used with XR943A) |
| Air Flow Rates (User Selectable) | 3 Rates: 170 / 190 / 210 l/min | 2 Rates: 170 / 200 l/min | 2 Rates: 170 / 220 l/min |
| Max Air Flow Rate | 210 l/min (Approx. 7.4 CFM) | 200 l/min (Approx. 7.1 CFM) | 220 l/min (Approx. 7.8 CFM) |
| Air Flow Compensation | Constant flow maintained via electronic control. | Automatic Altitude Compensation (Adjusts for altitude/air density changes). | Constant flow maintained via electronic control. |
| Air Distribution Control (Helmet) | Air is channeled to the visor area. | Highly Configurable (G5-series): Users can direct air to the face, visor, or forehead for maximum comfort/anti-fogging. | Air is channeled to the visor area. |
| Max Battery Run Time (Low Speed) | Up to 10 hours (@ 170 l/min) | Up to 10–13 hours (Standard) or 12 hours (Heavy Duty) | Up to 11 hours (@ 170 l/min) |
| Motor Type | Standard Blower Motor. | Standard Blower Motor. | Brushless Motor (Tends to be quieter and longer-lasting). |
| Filter Options | P3 Particulate (Standard) + Optional A1B1E1 Gas Filter. | P3 Particulate (Standard) + Optional Gas Filter + Odour Filter. | P3 Particulate (Standard) + Carbon Odour Pre-Filter. |
| Alarms | Audible, Visual, and Vibration (Low flow/low battery). | Audible and Visual (Low flow/low battery). | Audible and Vibration (Low flow/low battery). |
| Weight of Blower Unit (Approx.) | ~1.0 kg (2.2 lbs) | ~0.7 kg (1.5 lbs, filter only) | ~1.1 kg (2.4 lbs) |

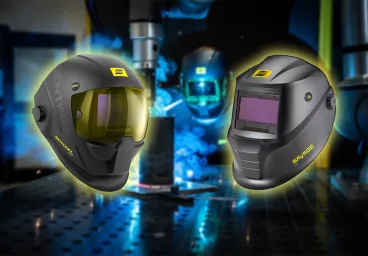

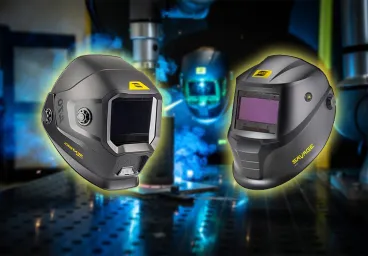

Discover the key differences between the ESAB Savage A41 and Sentinel A60 welding helmets to choose the perfect one for your welding projects.
